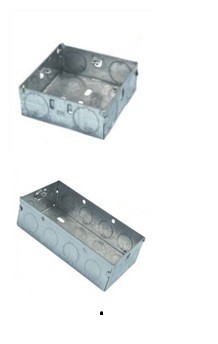

Switch and Socket Boxes with BS4662-1970
Model:BS4662-1970
Group:Conduit，Fittings and Accessories
Product Details
Product Description
Specification:
| Switch Boxes-One Gang | |||||
| Standard | Type | Size (mm) | |||
| Width | Length | Depth | Thickness | ||
| BS 4662：1970 | Intermediate Deep | 72 | 72 | 25 | 1 |
| 72 | 72 | 25 | 1.1 | ||
| 72 | 72 | 25 | 1.2 | ||
| Standard Deep | 72 | 72 | 35 | 1 | |
| 72 | 72 | 35 | 1.1 | ||
| 72 | 72 | 35 | 1.2 | ||
| Extra Deep | 72 | 72 | 47 | 1 | |
| 72 | 72 | 47 | 1.1 | ||
| 72 | 72 | 47 | 1.2 | ||
| Switch Boxes-One Gang | |||||
| Standard | Type | Size (mm) | |||
| Width | Length | Depth | Thickness | ||
| BS 4662: 1970 | Intermediate Deep | 72 | 132 | 25 | 1 |
| 72 | 132 | 25 | 1.1 | ||
| 72 | 132 | 25 | 1.2 | ||
| Standard Deep | 72 | 132 | 35 | 1 | |
| 72 | 132 | 35 | 1.1 | ||
| 72 | 132 | 35 | 1.2 | ||
| Extra Deep | 72 | 132 | 47 | 1 | |
| 72 | 132 | 47 | 1.1 | ||
| 72 | 132 | 47 | 1.2 | ||
Material：Steel
Finish:pre galvanized
